Physics · Thermodynamics

JEE Advanced 2021 — Paper 2 — Question 33

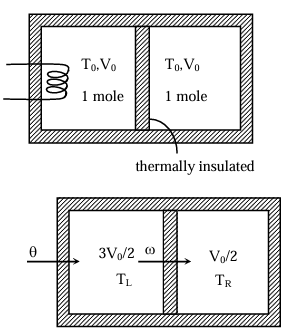

A thermally insulating cylinder has a thermally insulating and frictionless movable partition in the middle, as shown in the figure below. On each side of the partition, there is one mole of an ideal gas, with specific heat at constant volume, $\mathrm{C}_{\mathrm{V}}=2 \mathrm{R}$ . Here, R is the gas constant. Initially, each side has a volume $\mathrm{V}_{0}$ and temperature $T_{0}$ . The left side has an electric heater, which is turned on at very low power to transfer heat Q to the gas on the left side. As a result the partition moves slowly towards the right reducing the right side volume to $V_{0} / 2$ . Consequently, the gas temperatures on the left and the right sides become $T_{L}$ and $T_{R}$ , respectively. Ignore the changes in the temperatures of the cylinder, heater and the partition.

The value of $\frac{\text{Q}}{\text{R}{{\text{T}}_{0}}}$ is

Option A:
$4\left( 2\sqrt{2}+1 \right)$
Option B:
$4\left( 2\sqrt{2}-1 \right)$
Correct
Option C:
$\left( 5\sqrt{2}+1 \right)$
Option D:
$\left( 5\sqrt{2}-1 \right)$

Answer: B

Step-by-step solution

Pressure on either side is equal

${{\text{C}}_{\text{V}}}=2\text{R};{{\text{C}}_{\text{P}}}=3\text{R}\Rightarrow \gamma =3/2$ Left chamber $\text{Q}=\text{ }\!\!\Delta\!\!\text{ }{{\text{U}}_{1}}+\text{ }\!\!\Delta\!\!\text{ }{{\text{W}}_{1}}$ Right chamber $0=\text{ }\!\!\Delta\!\!\text{ }{{\text{U}}_{2}}+\text{ }\!\!\Delta\!\!\text{ }{{\text{W}}_{2}}$ $\text{ }\!\!\Delta\!\!\text{ }{{\text{W}}_{1}}+\text{ }\!\!\Delta\!\!\text{ }{{\text{W}}_{2}}=0$

$\begin{matrix}\Rightarrow Q=\Delta {{\text{U}}_{1}}+\Delta {{\text{U}}_{2}}=2R\left( {{\text{T}}_{\text{L}}}-{{\text{T}}_{0}} \right)+2R\left( {{\text{T}}_{\text{R}}}-{{\text{T}}_{0}} \right)\#\left( i \right) \\\end{matrix}$

Also pressure each side of piston is equal

$\begin{matrix}\Rightarrow \frac{\text{R}{{\text{T}}_{\text{L}}}}{3\text{ }\!\!~\!\!\text{ }{{\text{V}}_{0}}/2}=\frac{\text{R}{{\text{T}}_{\text{R}}}}{{{\text{V}}_{0}}/2}\#\left( ii \right) \\\end{matrix}$

$\Rightarrow \left( {{\text{T}}_{\text{L}}}/3 \right)={{\text{T}}_{\text{R}}}$

Answer key and solution verified before publishing.

Practise Thermodynamics

Start with this question, then two more from the same chapter — with a tutor that explains every step. Free.

Solve a similar one free

Exam: JEE Advanced 2021
Paper: Paper 2
Subject: Physics
Chapter: Thermodynamics
Topic: Efficiency of Processes and Miscellaneous Problems
