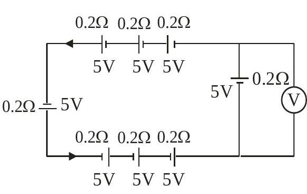

he reading in the ideal voltmeter $(\mathrm{V})$ shown in the given circuit diagram is :

Option A:
5 V
Option B:
10 V
Option C:
0 V
Correct
Option D:
3 V

Answer: C

Step-by-step solution

i=\frac{{{E}_{eq}}}{{{r}_{eq}}}=\frac{8\times 5}{8\times 0.2}

$\begin{array}{*{35}{r}}{} & \text{I}=25\text{ }\!\!~\!\!\text{ A} \\{} & \text{ }\!\!~\!\!\text{ V}=\text{E}-\text{ir} \\{} & ~=5-0.2\times 25 \\{} & ~=0 \\\end{array}$
